Magnetic Tubes & Grates

Magnetic Tube

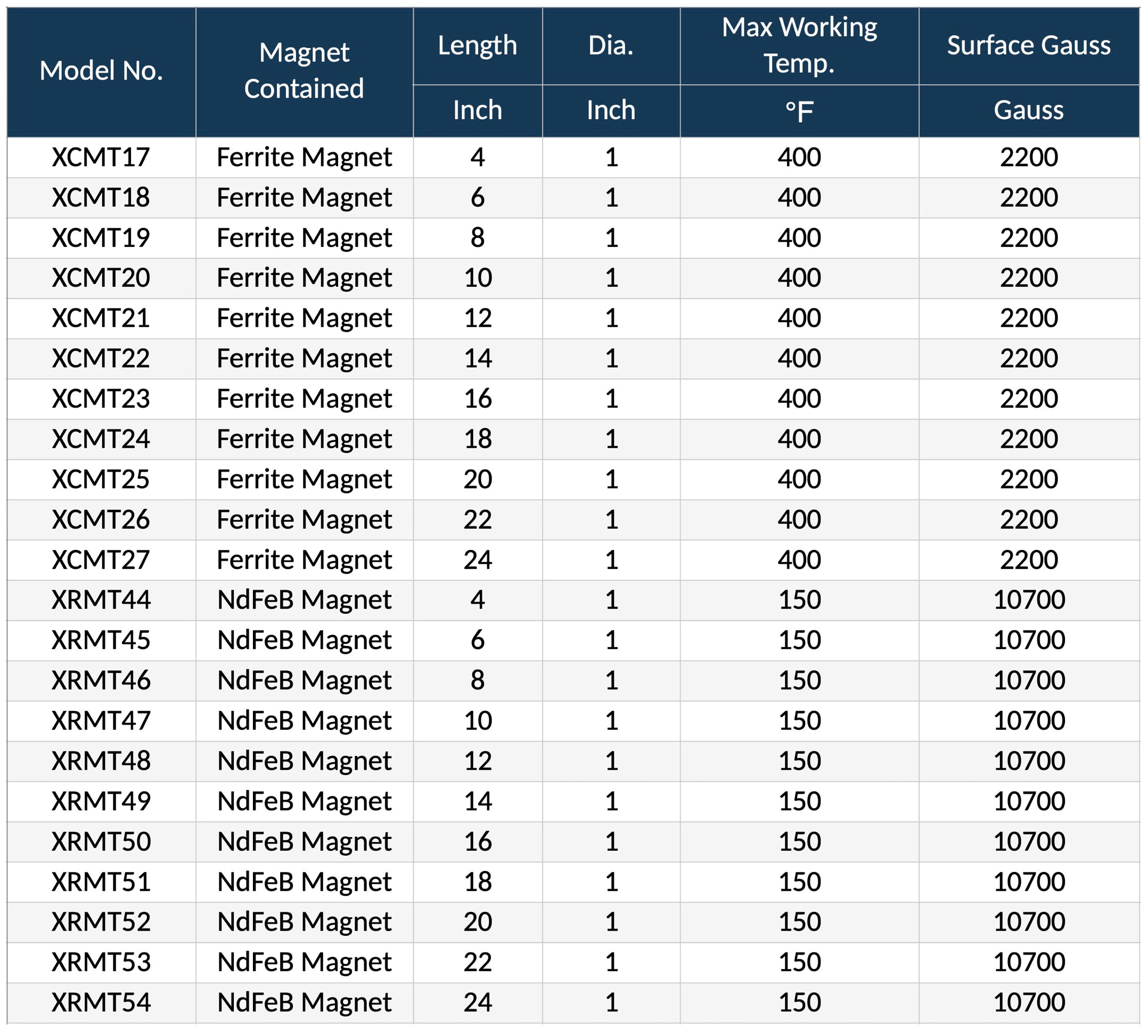

magnetic tube table

Features

Stainless steel pipe housing for long life.
Thread holes are at both ends, so can be assembled in different grate separators easily as required
By using different grades of ferrite magnets or rare earth magnets, different magnetic strengths are available to meet different customer's requirement
Can effectively remove ferrous chips and metal particles from loosely packed, free flowing materials
No power needed

Applications

It's the main part of different magnetic grate separators.

Used by placing in the liquid, oil to collect steel powder and clean, such as use in EDM, Grinding machines and also for other industries of chemical and various.

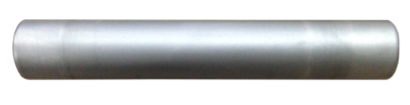

magnetic tube

Magnetic Grate

Features

High power, low cost magnetic plates for inflow separation in hopper.
No power needed.
Concentrated magnetic field in the magnetic rod provides high grade attraction.
Made with Strontium Ferrite or Rare Earth NdFeB magnets.
Circular or rectangular shape with SS body.
The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.
Frame and tube material is 304 or 316L stainless steel, good corrosion resistance and no pollution.

Applications

Magnetic Grate is installed or simply laid-inside of hoppers, housings, and bins to trap and hold ferrous fines, fragments.

Used particularly in plastic, chemicals, grains, cosmetics processing for powder separation.

Rectangular Shape：

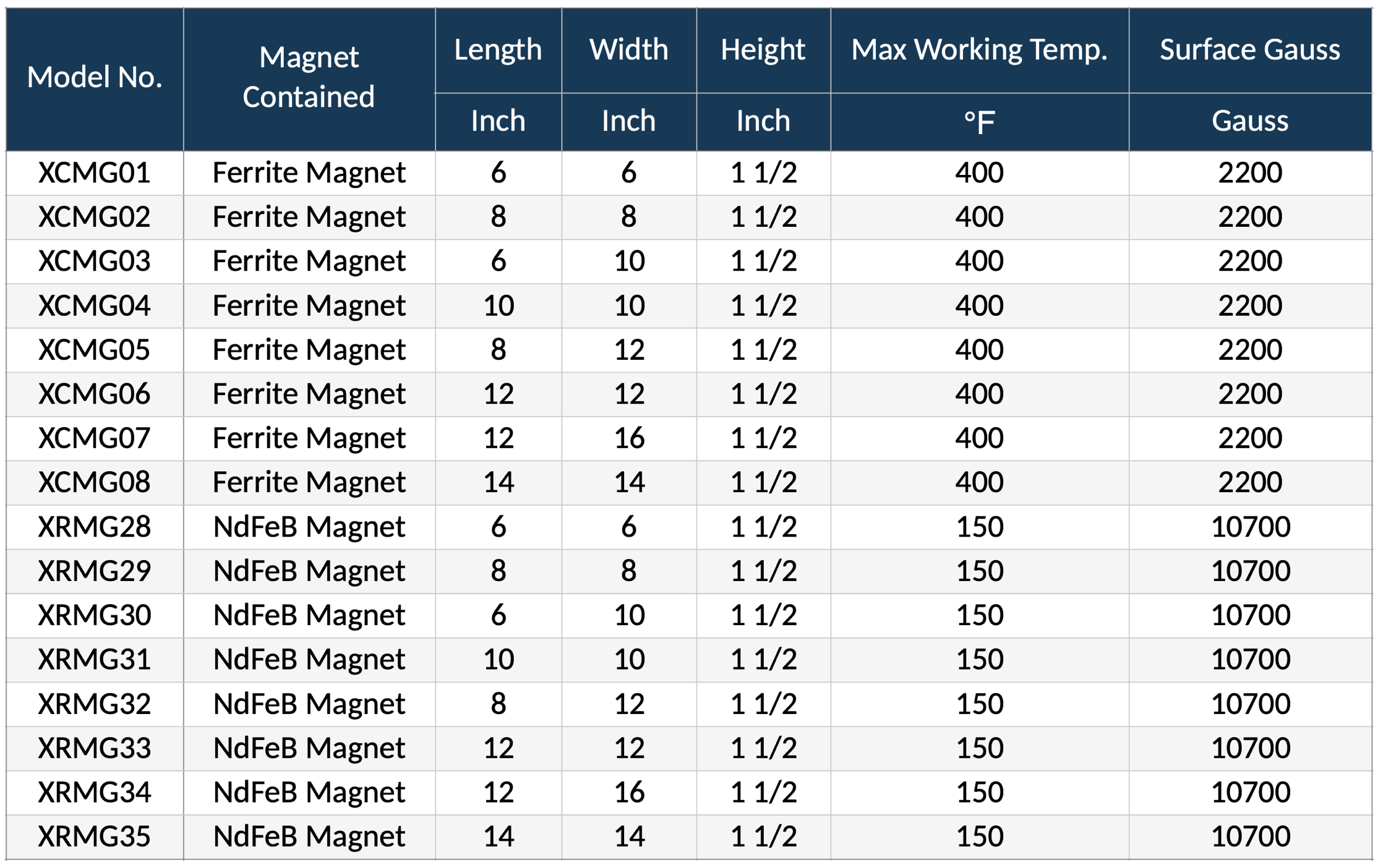

rectangular shaped magnetic grate table

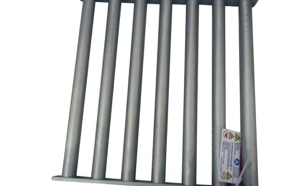

rectangular shape magnetic tube1

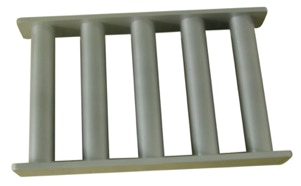

rectangular shape magnetic tube2

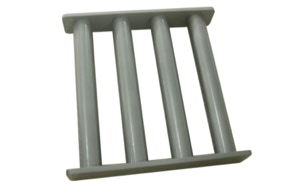

rectangular shape magnetic tube3

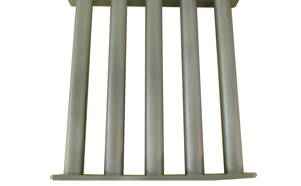

rectangular shape magnetic tube4

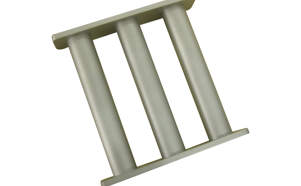

rectangular shape magnetic tube5

Round Shape：

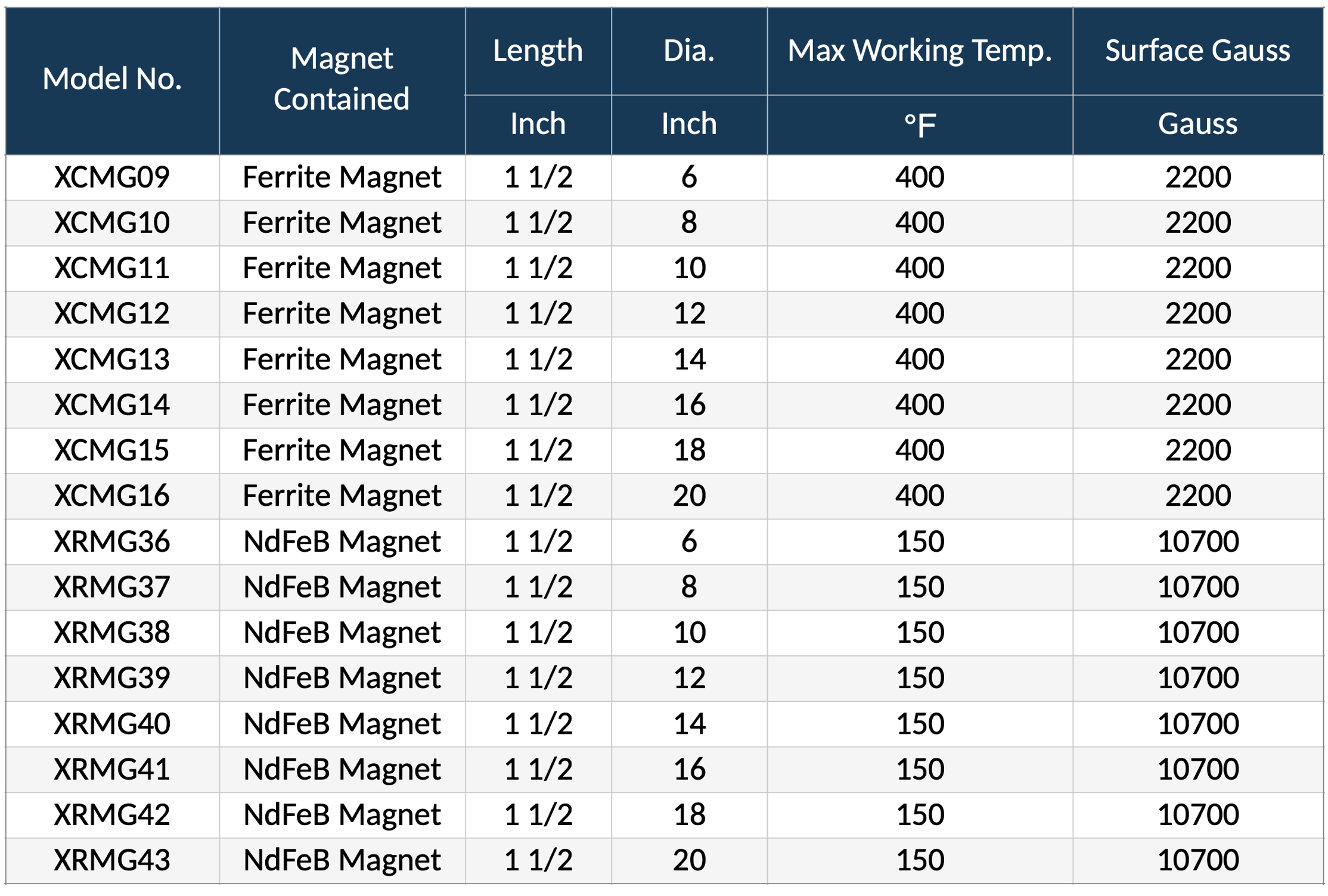

round shaped magnetic grate table

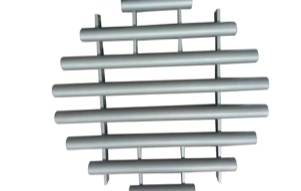

round shaped magnetic grate image1

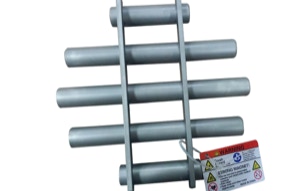

round shaped magnetic grate image2

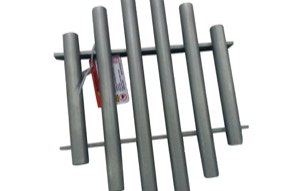

round shaped magnetic grate image3

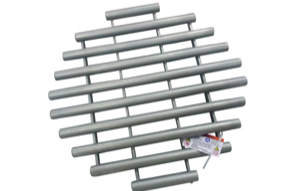

round shaped magnetic grate image4

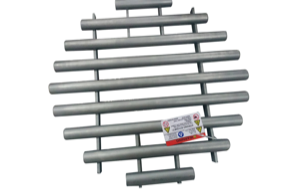

round shaped magnetic grate image5
